Name: SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Резьбовой балочный датчик нагрузки SLB515
Availability: InStock

Главная страница Продукция

SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Mettler Toledo
Номер модели:	Резьбовой балочный датчик нагрузки SLB515

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	Подлежит обсуждению
Упаковывая детали:	Коробка Caron
Время доставки:	10-30 дней
Поставка способности:	2000 установите в месяц

контакт

Подробное описание продукта

Продукт:	Mettler Toledo грузовая ячейка	Подключение:	Интегрированный
Максимальная мощность:	110 кг до 4400 кг (от 250 фунтов до 10000 фунтов)	метрология:	OIML C3, NTEP 5000d III M [220 кг до 2200 кг (500 фунтов до 5000 фунтов) ]
Рейтинг защиты:	IP67	Материал:	Алюминий, пассивированный
среды промывки:	IP68/IP69K	грузоподъемность от:	110 кг до 4400 кг (от 250 фунтов до 10000 фунтов)
Точность:	OIML C3, NTEP 5000d III M [220 кг до 2200 кг (500 фунтов до 5000 фунтов) ]	Опасные одобрения:	ATEX, FM
Выделить:	threaded beam load cell , industrial weighing load cell , threaded mounting load cell

SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Applications

Key Features

Threaded load-introduction holes for easy integration
Hermetically sealed stainless-steel design
IP68/IP69K protection for harsh environments
Available capacity ranges: 110 kg to 4400 kg (250 lb to 10000 lb)
OIML C3, NTEP 5000d III M accuracy certifications
ATEX and FM hazardous area approvals

Product Description

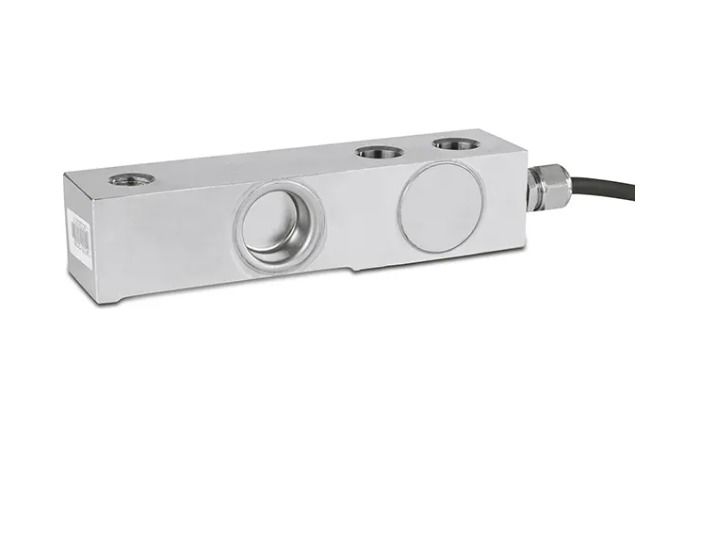

The SLB515 Threaded Beam Load Cell is a compact single-ended shear beam sensor designed for industrial weighing applications. Its threaded mounting system provides exceptional ease of integration into new or existing weighing systems.

Single-Ended Beam Load Cells with Threaded Load-Introduction Holes

The threaded load-introduction holes make these load cells ideal for floor scales and weighing platforms where a threaded foot provides easy height adjustment. This design offers optimal performance in various industrial applications.

Ingress Protection for Challenging Environments

The hermetically sealed, stainless-steel design makes SLB515 load cells perfect for harsh environments in process, food, and pharmaceutical applications. The IP68/IP69K protection ensures resistance to moisture and dust for maximum stability and measuring performance.

Accessories

Expansion and Vibration Kit (EVK): For top mounting applications to ensure optimal performance and isolation from vibrations while permitting thermal expansion and contraction.

Foot Kit (FKT): Provides convenience in floor scale applications where height adjustment is important.

Technical Specifications

Material	Aluminum, passivated
Maximum Capacity	110 kg to 4400 kg (250 lb to 10000 lb)
Protection Rating	IP68/IP69k
Hazardous Approvals	ATEX, FM
Accuracy	OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]

Frequently Asked Questions

What are the capacity ranges for SLB515 load cells with threaded load-introduction holes?

SLB515 load cells are available with capacities ranging from 110 kg to 4400 kg (250 lb to 10000 lb).

What approvals do SLB515 load cells carry?

Accuracy: OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]
Hazardous Approvals: ATEX, FM

Are SLB515 load cells suitable for washdown environments?

Yes, SLB515 is rated IP68/IP69k, making it ideal for washdown environments.
