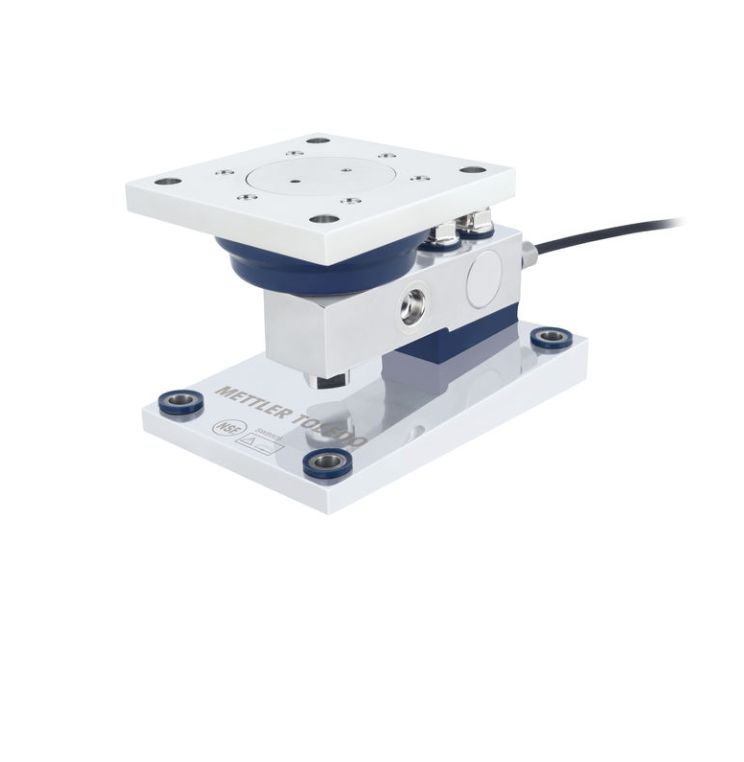

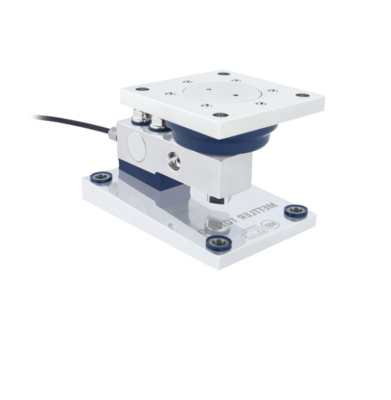

Name: SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Модуль взвешивания SWB805 316 4.4T/10K C1
Availability: InStock

Главная страница Продукция

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Mettler Toledo
Номер модели:	Модуль взвешивания SWB805 316 4.4T/10K C1

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	Подлежит обсуждению
Упаковывая детали:	Картонная коробка
Время доставки:	10-30 дней
Поставка способности:	2000 комплектов в месяц

контакт

Подробное описание продукта

Продукт:	Тензодатчик Mettler Toledo	Максимальная грузоподъемность:	200 кг
Материал:	Нержавеющая сталь 304	метрология:	OIML C3, NTEP III 5M
Нагрузочная камера:	SLB815	Точность:	Стандарт
Рейтинг защиты:	IP68/69k	Окружающая среда / Материал:	Частое промывание / Гигиеническое
Опасное одобрение:	ATEX, FM, cFM	Критичность:	Стандарт
Кабель:	5 m
Выделить:	stainless steel weigh module , 500lb load cell sensor , Mettler Toledo load cell

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.

Product Description

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
