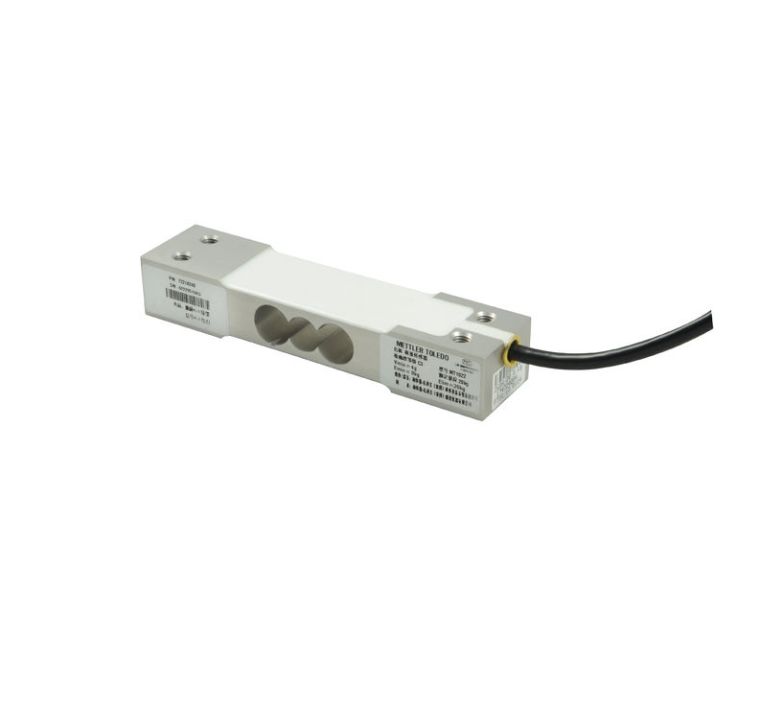

Name: 7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Нагрузочная камера MT1022-7kg 3m
Availability: InStock

Главная страница Продукция

7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor

Подробная информация о продукте:

Место происхождения:	КИТАЙ
Фирменное наименование:	Mettler Toledo
Номер модели:	Нагрузочная камера MT1022-7kg 3m

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	Подлежит обсуждению
Упаковывая детали:	Коробка с картофелем
Время доставки:	10-30 дней
Поставка способности:	2000 комплектов в месяц

контакт

Подробное описание продукта

Product:	Тензодатчик Mettler Toledo	Максимальная грузоподъемность:	15.4 фунта (7 кг)
Материал:	Алюминий, пассивированный	Метрология:	NTEP III 5000d OIML C3
Точность:	стандартный	Рейтинг защиты:	IP67
Размер платформы (LxW):	350 mm x 350 mm	Подключение:	Аналогичный
Кабель:	10 футов (3 м)
Выделить:	7kg load cell with 3m cable , MT1022 strain gauge sensor , Mettler Toledo load cell with warranty

7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor

Key Features

High-performance single point load cell with off-center compensation
Metrology approvals including OIML as standard
ATEX Zone 1/21/2/22 approvals for hazardous area usage
Durable aluminum construction with passivated finish
IP67 protection rating for reliable operation in demanding environments

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	15.4 lb (7 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	10 ft (3 m)

Product Description

The MT1022 is a precision compression weigh module designed for small platform applications. Its top plate and base plate compress when weight is applied, allowing direct attachment to ground, piers, or structural beams.

Accuracy

This high-performance single point load cell features off-center compensation to handle platform moments, with standard OIML metrology approvals.

Reliable Strain Gage Technology

Constructed from premium aluminum materials with advanced strain gauge technology for exceptional long-term durability.

Hazardous Area Usage

Includes ATEX Zone 1/21/2/22 approvals as standard, eliminating the need for multiple variations - one solution fits all requirements.
