Name: CM Washdown Integrated Product Inspection for Wet Environments
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Комбинация CM
Availability: InStock

Главная страница Продукция Автоматический чеквейер

CM Washdown Integrated Product Inspection for Wet Environments

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	Mettler Toledo
Номер модели:	Комбинация CM

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	Подлежит обсуждению
Packaging Details:	Caron box
Время доставки:	10-30 дней
Supply Ability:	2000 set per month

контакт

Подробное описание продукта

Продукт:	CM Комбинация	Тип упаковки:	Мешки
Инспекционное приложение:	Обнаружение загрязнений	Характеристика продукта:	Глубокая заморозка, Сухой, Средне-большие упаковки, Открытый, Круглый контейнер, Мелкие индивидуальн
Промышленность:	Химия, пищевые продукты и напитки, металлы, пластмассы и электронные компоненты, фармацевтика и биот	Точность взвешивания:	от ± 0,05 г.
Отраслевой сегмент:	Хлебобулочные и кондитерские изделия	Максимальный вес продукта:	10 кг
Максимальная скорость линии:	180 м/мин	Максимальная пропускная способность:	800 ppm
Выделить:	washdown integrated load cell , wet environment product inspection , Mettler Toledo washdown load cell

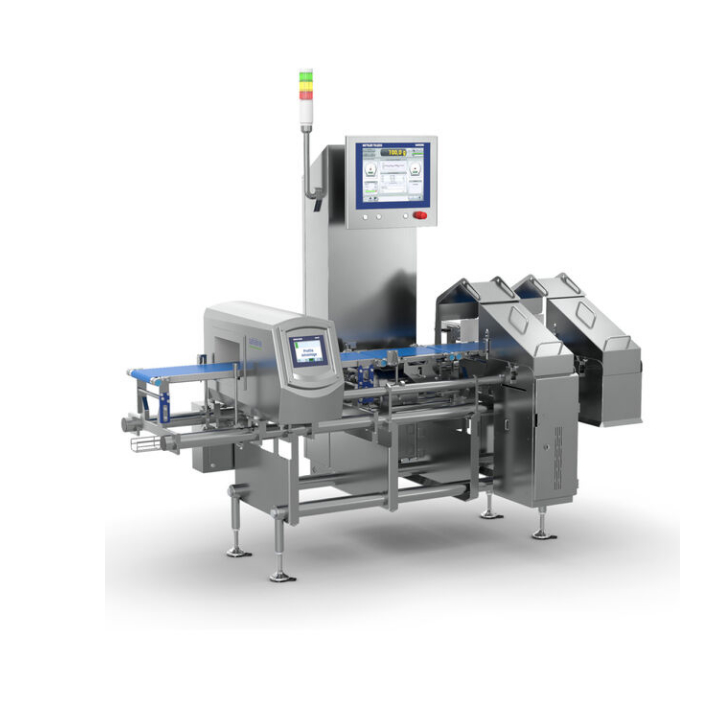

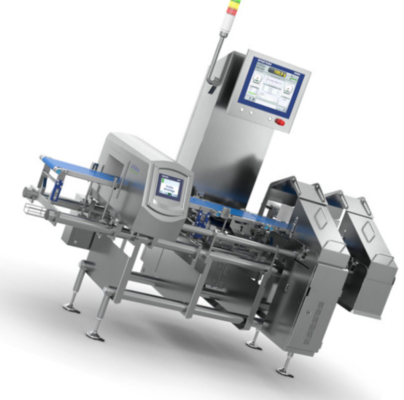

CM Washdown Integrated Product Inspection for Wet Environments

Product Overview

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features

2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes

Product Specifications

Material No: 2499000500

IP Rating: IP69

Compatible Software: ProdX

Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA

Inspection Solution: Checkweighing-Metal Detection

Max Product Width: 400 mm

Max Weighing Zones: 7

Weighing Technology: EMFR, Strain Gauge

HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen

Max Product Height: 200mm

Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz

Product Attributes

Attribute	Value
Product	CM Combination
Packaging Type	Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application	Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry	Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy	from ±0.05 g
Industry Segment	Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight	10 kg
Max Line Speed	180 m/min
Max Throughput	800 ppm
