Name: Checkweigher Combinations with Metal Detection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Передовые решения для контрольного взвешивания
Availability: InStock

Главная страница Продукция Automatic Checkweigher

Checkweigher Combinations with Metal Detection

Подробная информация о продукте:

Место происхождения:	Китай
Номер модели:	Передовые решения для контрольного взвешивания

Оплата и доставка Условия:

Количество мин заказа:	1 комплект
Цена:	Подлежит обсуждению
Упаковывая детали:	Кэрон коробка
Delivery Time:	10-30days
Supply Ability:	2000 set per month

контакт

Подробное описание продукта

Product:	Checkweigher Combinations with Metal Detection	Detection Sensitivity:	0.3-2.0mm (Fe), 0.5-2.5mm (Non-Fe), 0.8-3.0mm (SS)
Frequency Options:	Single (50-1000kHz) or Multi-Frequency (5-1000kHz)	Aperture Size:	150mm × 150mm to 600mm × 600mm
IP Rating:	IP65 to IP69K for washdown environments	Weighing Accuracy:	±0.05g to ±5g (product-dependent)
Maximum Capacity:	5g to 50kg	Weighing Speed:	100-800 products/minute
Minimum Division:	0.01g to 10g	Weighing Time:	50-200ms
Diverter Gate:	≤350ppm	Pneumatic Blow-off:	≤600ppm
Pusher Arm:	≤400ppm	Retracting Belt:	≤250ppm
Выделить:	checkweigher with metal detection , metal detection checkweigher combination , Mettler Toledo checkweigher load cell

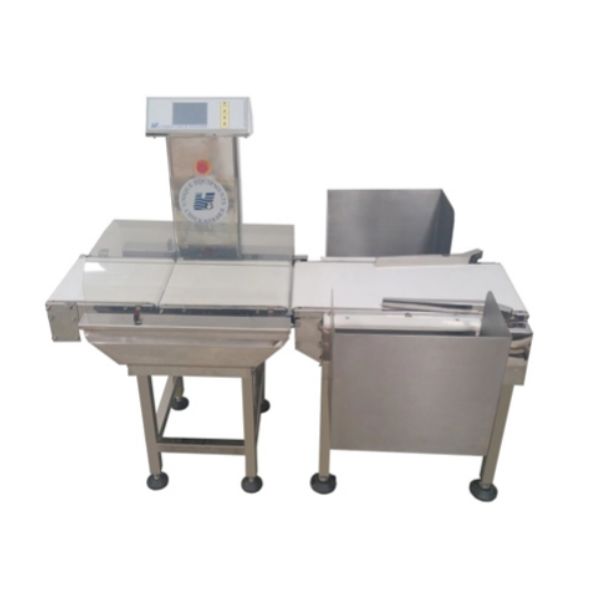

Checkweigher Combinations with Metal Detection

Combined checkweigher-metal detection systems represent the pinnacle of production line quality control, merging two essential inspection technologies into a single, space-saving unit. These advanced systems simultaneously verify product weight compliance while screening for metallic contaminants - from tiny metal fragments to larger foreign objects.

Integrated System Architecture

Unified Frame Design: Single stainless steel (typically 304 or 316 grade) housing containing both systems
Sequential Inspection Process:
1. Metal detection occurs first to prevent contaminated products from affecting weight measurements
2. Dynamic weighing cell captures exact product mass
3. Dual-rejection capability for both weight and contamination failures

Parameter	Specification
Detection Sensitivity	0.3-2.0mm (Fe), 0.5-2.5mm (Non-Fe), 0.8-3.0mm (SS)
Frequency Options	Single (50-1000kHz) or Multi-Frequency (5-1000kHz)
Aperture Size	150mm × 150mm to 600mm × 600mm
IP Rating	IP65 to IP69K for washdown environments
Weighing Accuracy	±0.05g to ±5g (product-dependent)
Maximum Capacity	5g to 50kg
Weighing Speed	100-800 products/minute
Minimum Division	0.01g to 10g
Weighing Time	50-200ms
Diverter Gate	≤350ppm
