Name: Integrated Weight Inspection Systems with Standard Operating Procedures
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Интегрированные системы весового контроля со стандартными операционными процедурами
Availability: InStock

Главная страница Продукция Automatic Checkweigher

Integrated Weight Inspection Systems with Standard Operating Procedures

Подробная информация о продукте:

Место происхождения:	КНР
Номер модели:	Интегрированные системы весового контроля со стандартными операционными процедурами

Оплата и доставка Условия:

Количество мин заказа:	1 набор
Цена:	Подлежит обсуждению
Упаковывая детали:	Кэрон коробка
Время доставки:	10-30 дней
Поставка способности:	2000 набор в месяц

контакт

Подробное описание продукта

Product:	Integrated Weight Inspection Systems with Standard Operating Procedures	Weighing Range:	0.1g - 150kg
Accuracy Tolerance:	±0.1% of reading or ±0.2g (whichever is greater)	Repeatability:	±0.05% of capacity
Throughput Speed:	50-400 packages/minute	Minimum Detectable Deviation:	1σ process capability (Cp≥1.33)
Tare Compensation Range:	0-30% of gross weight	Conveyor Width:	200-600mm adjustable
Rejection Mechanism:	Pneumatic (0.6-1.0MPa)	IP Rating:	IP54 (standard)/IP66 (washdown)
Internal Calibration:	Auto-cal with NIST-traceable weights	External Calibration:	Annual by accredited lab
Test Weight Class:	F1 (routine)/E2 (high-precision)	Record Retention:	7 years minimum
Audit Trail:	Timestamped operator actions	Report Generation:	Customizable PDF/Excel formats
Operating Temperature:	5°C to 40°C	Humidity:	20% to 80% RH non-condensing
Vibration Limits:	<0.1g RMS (10-500Hz)	Preventive Maintenance:	Quarterly full system inspection
Component Lifespan:	Load cells: 5 years/10M cycles	Spare Parts Inventory:	Critical 48hr replacement guarantee
Выделить:	Mettler Toledo load cell inspection systems , integrated weight inspection SOP , load cell weight measurement systems

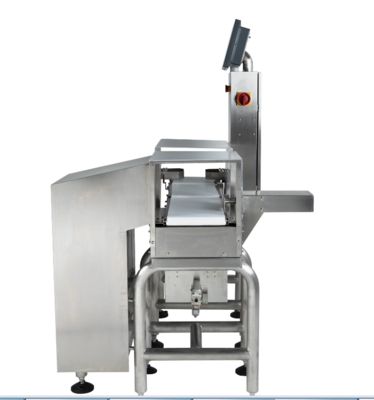

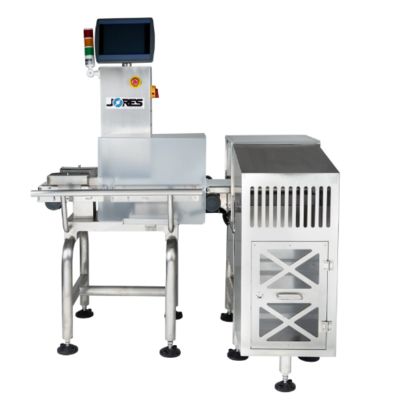

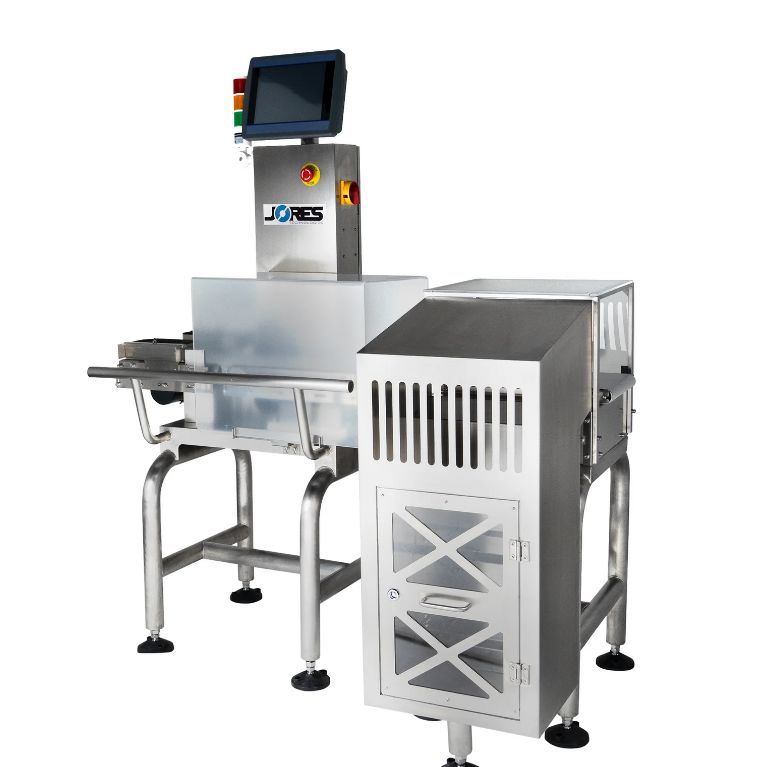

Integrated Weight Inspection Systems with Standard Operating Procedures

System Overview

Our Integrated Weight Inspection System combines automated weighing technology with structured Standard Operating Procedures (SOPs), essential for industries requiring precision and compliance such as pharmaceuticals, food and beverage, and chemicals. This solution ensures fast, accurate, and fully auditable weight inspections.

System Components

Automated Weighing Equipment: High-speed scales for dynamic product measurement
Data Management Software: Real-time collection, storage, and analysis of weight data with ERP/MES integration
Reject Mechanisms: Automated removal of non-compliant products from production lines

Key Benefits

The integration of automated systems with SOPs creates a powerful quality control tool that minimizes human error, optimizes production, and provides comprehensive documentation of all weight inspections.

Technical Specifications

Attribute	Value
Weighing Range	0.1g - 150kg
Accuracy Tolerance	±0.1% of reading or ±0.2g (whichever is greater)
Repeatability	±0.05% of capacity
Throughput Speed	50-400 packages/minute
Minimum Detectable Deviation	1σ process capability (Cp≥1.33)
Tare Compensation Range	0-30% of gross weight
Conveyor Width	200-600mm adjustable
Rejection Mechanism	Pneumatic (0.6-1.0MPa)
IP Rating	IP54 (standard)/IP66 (washdown)
Internal Calibration	Auto-cal with NIST-traceable weights
